45FT Shipping Container Chassis Trailer
Type: 3 axle 45ft container chassis trailer for sale
Price Range: $7,800-15,600
Delivery: 7-25 days
Application: transport container
Load capacity: 20-50 ton
Description
45Ft container chassis trailer, also named 45ft skeletal semi trailer, container chassis trailer etc. They are generally used for transport ISO containers in port, shipyard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 45ft long fit 4 to 14 sets container locks suitable for 10′, 20′, 40′ container, etc.

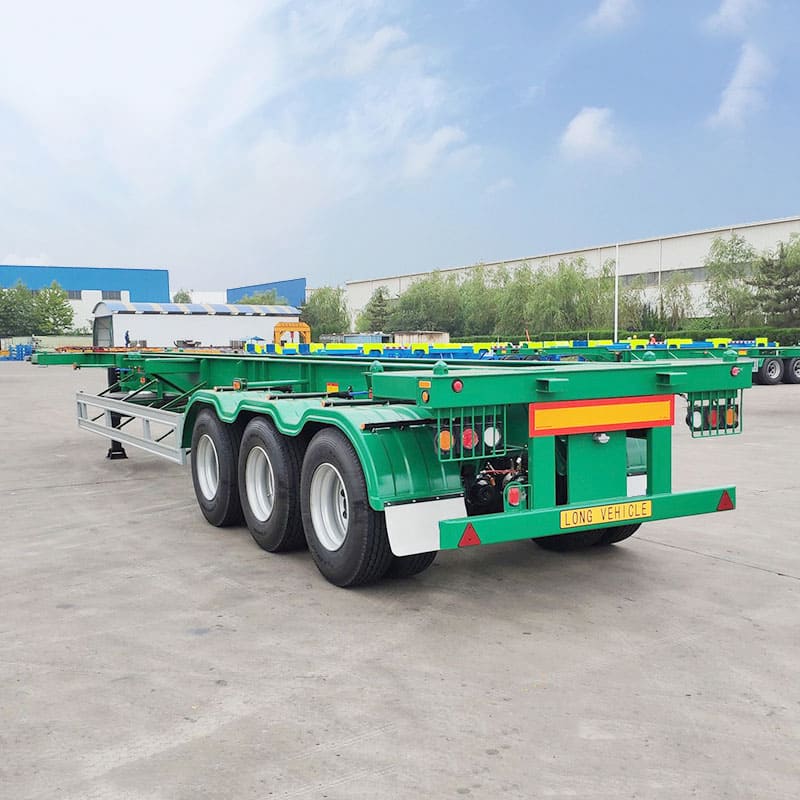

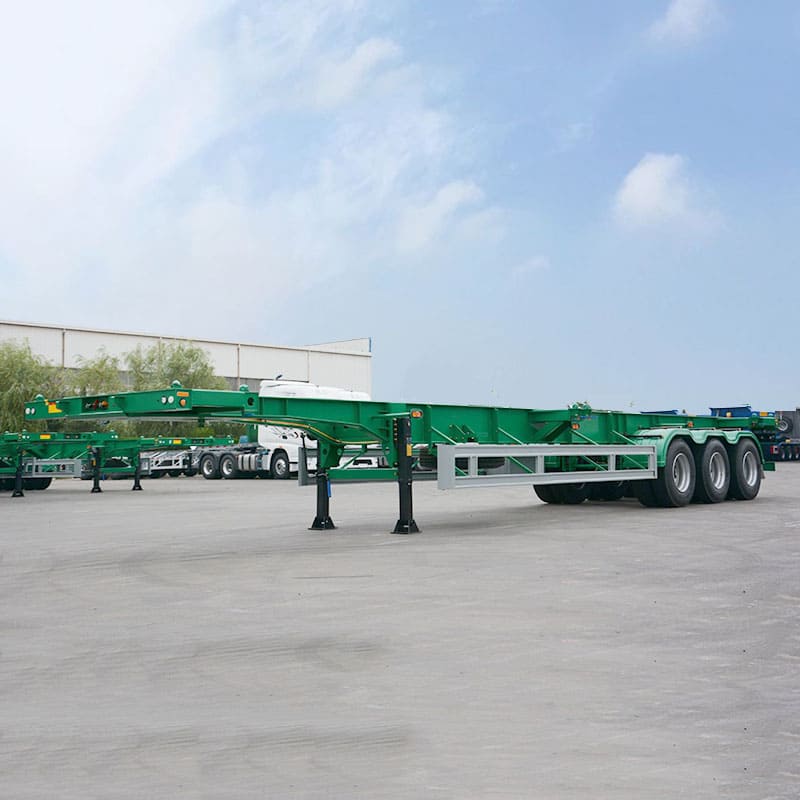

45 Ft container chassis trailer images
45ft skeleton trailers for sale
45ft shipping container trailers for sale
45Ft container chassis trailer specification
| Dimension | 13950*2500*1550mm |
| Height | 1550mm |
| Width | 2500mm |
| Weight | 6500Kg |
| Main Beam | “I” Section 500mm height Q345/T700 material |
| Twist-Lock | 12/14 set ISO Standard |
| Suspension | Mechanical / Air / Bogie |
| Axle | 3 axles BPW/FUWA/PDME etc |
| Rim | 8/12/16 pieces 9.0-22.5 Steel/Aluminum |
| Tire | 8/12/16 pieces 12R22.5 Bridgestone/Triangle/Linglong etc |
| Brake Valve | WABCO |
| Brake Chamber | 4/6 sets T30/30 |
| Brake Pipe | Nylon Wire Pipe |
| Landing Gear | 28T Lifting JOST/YAHUA |
| Kingpin | 2″(50mm)/3.5″(90mm) JOST Bolting Type |
| Lights | 12v/24v LED Waterproof |
| Color | Customized |
Feature
- Reasonable design, uniform force, long service life.
- Light weight, increased payload/reduced fuel consumption, saving money and lifting the weight of transported cargo.
- Facilitates better maintenance and repair at a later stage, low cost.
Transport
ISO tank gooseneck container chassis are more suitable for container transportation, cost saving and fast delivery.
Panda Mech
Panda Mech is a 45 ft shipping container trailer chassis manufacturer from China. We supply 45 ft skeleton container trailer chassis for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa and South America, such as the Philippines, Tanzania, etc…
Get Latest Price and Detail
