45 Ft Terminal Trailers For Sale

The terminal trailer chassis was invented for container transport in ports and terminals and is generally available for transporting 2*20′, 1*40ft, 1*45 foot containers.

Terminal trailer chassis is precisely positioned and can load ISO containers onto the chassis very quickly and easily, saving time and improving efficiency, and it can achieve the best efficiency in ports.

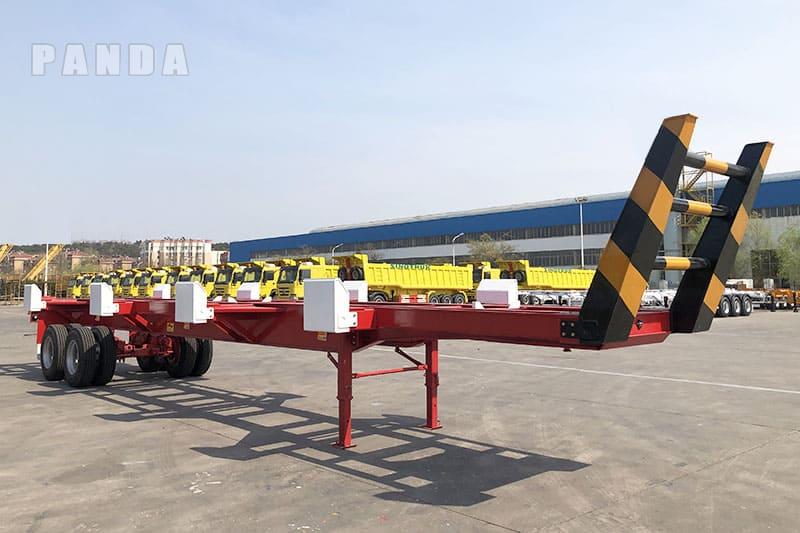

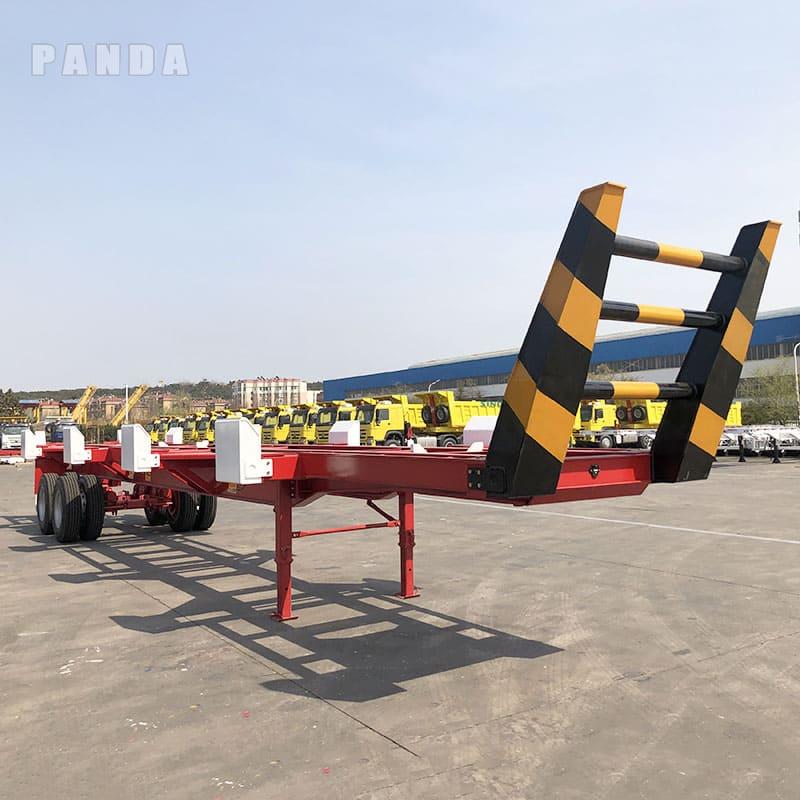

45Ft terminal trailer chassis images

2 axle 45 ft terminal trailers for sale

45ft terminal trailer chassis for sale

Click For Solution

45 Ft terminal trailer chassis specifications

Dimension(mm): 14,138x 2,810×1,820mm

Loading capacity(ton): 65T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Rim: 9.00-22.5 or 9.75-22.5

Tire: 9 units, 12.00R22.5 or 315/80R22.5

King Pin: 2.0 or 3.5 inch

Suspension: Mechanical suspension

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel

Landing Gear: D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand)

Click For Detail

45 Feet terminal trailer chassis drawing

45 footer port container transport chassis drawing

Feature

1. The advent of terminal trailers has revolutionized the transportation industry by offering an advanced solution for seamless cargo movement.
2. Specially used for the transportation of various containers. Can be used repeatedly for a long time, with sufficient strength.
3. Fast loading and unloading is possible.
4. Rapid container transportation at the terminal improves efficiency.

Click For Detail

Panda Mech

Panda Mech is a 45 ft yard trailer chassis manufacturer from China. We supply 40ft/45′ terminal chassis truck trailers for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines, Tanzania, etc…
