20FT Skeletal Container Semi Trailer

20 Ft skeletal container semi trailer, as known as 20′ skeleton trailer, 20 feet chassis trailer, etc. Generally used for transport containers in ports, shipyards, routes, bridges, tunnels, and transfer stations, supporting multimodal transport logistics systems. 20ft long fit 4 to 8 sets container locks suitable for 10′ or 20′ container, etc.

The 20ft skeletal container semi trailer is mainly used for medium and long-distance transportation.

20 Ft skeletal container semi trailer images

20ft container chassis truck trailer for sale

20 ft skeleton chassis trailer for sale

Get An Instant Quotation Now

20 Ft skeletal container semi trailer specification

Dimension	7500*2500*1550mm
Height	1550mm
Width	2500mm
Weight	3700Kg, 8,000 lbs
Main Beam	“I” Section 500mm height Q345/T700 material
Twist-Lock	4/8 set ISO Standard
Suspension	Mechanical / Air / Bogie
Axle	2 axles BPW/FUWA/PDME etc
Rim	8/12 pieces 9.0-22.5 Steel/Aluminum
Tire	8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
Brake Valve	WABCO
Brake Chamber	4/6 sets, T30/30
Brake Pipe	Nylon Wire Pipe
Landing Gear	28T Lifting JOST/YAHUA
Kingpin	2″(50mm)/3.5″(90mm) JOST Bolting Type
Lights	12v/24v LED Waterproof

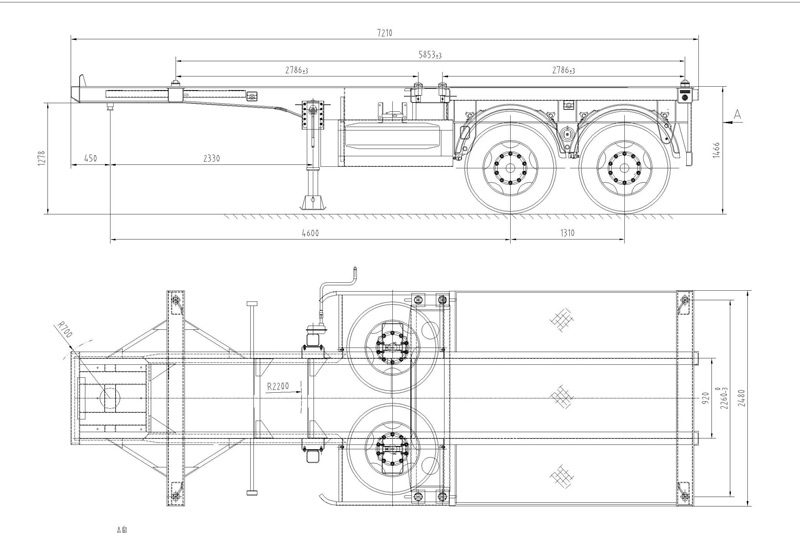

Drawing of 20ft skeletal container semi trailer

20ft container chassis drawing

Get An Instant Quotation Now

Feature

• Reasonable design, uniform force, long service life.
• Light weight, increased payload/reduced fuel consumption, saving money and lifting the weight of transported cargo.
• Facilitates better maintenance and repair at a later stage, low cost.

Transport

Skeletal container semi trailer are more suitable for container transportation, cost saving and fast delivery.

Panda Mech

Panda Mech is a 20 ft skeletal container semi trailer manufacturer from China. We supply 20 ft skeletal container semi trailer for sale. Panda Mech manufacturers have been successful in Southeast Asia, the Middle East, Africa and South America, such as the Philippines, Tanzania, Nigeria, etc…
